MerCruiser Engine Drive Shafts

Click Here For Prices

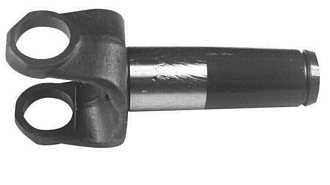

            6" Shaft For TR/TRS



This is MerCruiser p/n 62784A1.  It is only used on TR & TRS outdrives with a Mercury transmissions. It is 6  inches long and is only available from MerCruiser. This shaft has internal splines and requires a spring at the right end.

Shipping Wt. 4 Lbs..

         : Order # 2784





            Spring For 6" TR/TRS Shaft



This is MerCruiser p/n 24-62727.  It is only used on TR & TRS outdrives with a Mercury transmissions. It snaps on the end of the 6  inches long shaft shown above and is only available from MerCruiser. This shaft has internal splines and requires this spring at the right end.

Shipping Wt. 1 Lbs.

         : Order # 6272 ( The price of this item is $18.95 )

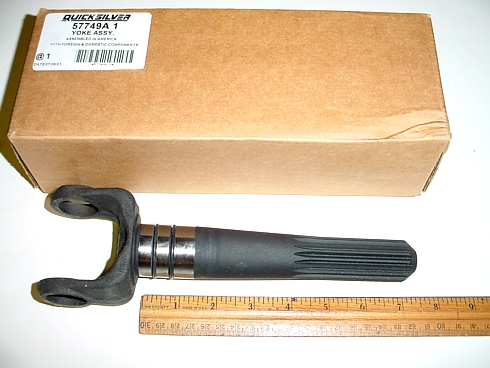

             7 1/4" TR/TRS Shaft

This is MerCruiser p/n 57749A1.  It is only used on TR & TRS outdrives with Borg-Warner transmissions. It is 7 1/4 inches long and only available from MerCruiser.



Shipping Wt. 4 Lbs..



         : Order # 7749

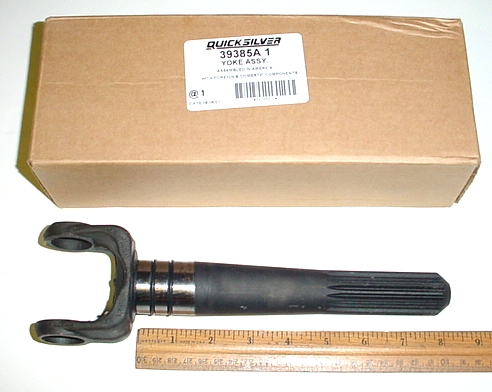

                     8" Shaft

This is MerCruiser p/n 39385A1. It is used on many 4 & 6 cylinder in-line engines. It is 8 inches long and only available from MerCruiser.



Shipping Wt. 4 Lbs..



         : Order # 9385

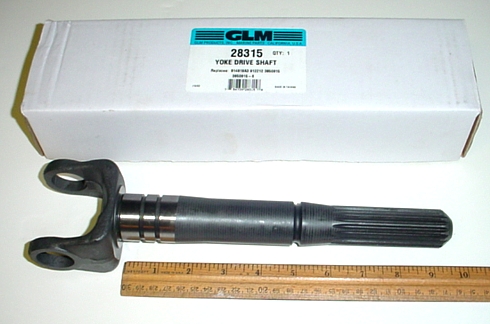

                    9 1/2 " Shaft

This is MerCruiser p/n 814819A3 ( old # 59830A7 ). It is used on most 8 cylinder engines. It is 9 1/2 inches long and has an extra o-ring grove cut into it for the newer engine couplers which have a grease fitting behind them for greasing the coupler splines without removing the outdrive.

This item comes from G.L.M. Marine

Shipping Wt. 4 1/2 Lbs..

         : Order # 8315
