Pertronix Electronic Conversion Kits

Click Here For Prices

Click Here For Testimonials

 Click Here For Installation Instructions

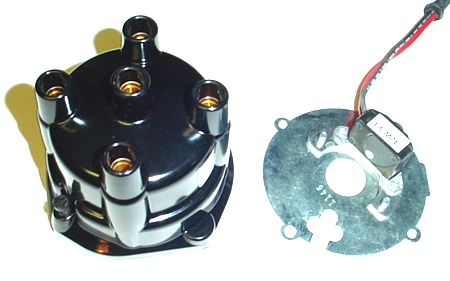

              4 Cyl. Delco

This kit will only fit 4 cylinder Delco distributors.

Notice on the distributor cap p/n 393-9459 ( old # 33667 ) that there are 2 screws which go thru the cap to hold it down and 2 more screws underneath the cap which hold the electronic plate assembly down to the distributor.

This kit does not include the distributor cap.











This is the Magnetic sending ring which is included. This ring must be pushed down to the second set of the 4 flats or the rotor will not set low enough. Before installing this ring, measure the distance from the top of your distributor shaft down to the 4 lobes on the shaft and make note. Slide this ring on until you feel the first 4 flats engage. Now push it down further until it bottoms out on the 2nd set of flats. The distance now from the top of the distributor shaft down to the top of the magnetic ring will be .030 shorter. This will let the rotor to set low enough to clear the top of the distributor cap. It will only be a total of .030 higher than it was before installing the conversion kit.



 Sorry, there are no returns on electrical items.

           : Order # 1146





             V-6 Prestolite Screw Down Cap

For V-6 distributors with points and a Prestolite screw down cap.

 Sorry, there are no returns on electrical items.



         : Order # 5293

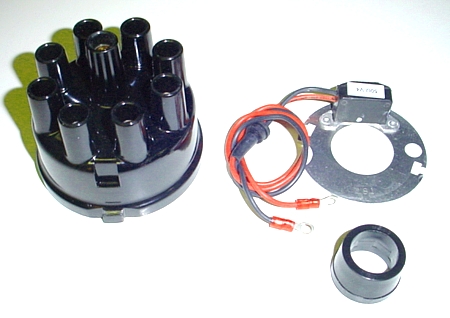

            V-8 Mallory

This kit will most 305 & 350 Chevy engines made until 1982 with Mallory distributors.

Notice on the distributor cap p/n 391-5075 that there are 2 notches for 2 lever arms which tilt upward and have 2 small screws on top for clamping down the distributor cap.

This kit does not include the distributor cap.

 Sorry, there are no returns on electrical items.

         : Order # 2520








             V-8 Ford Engines

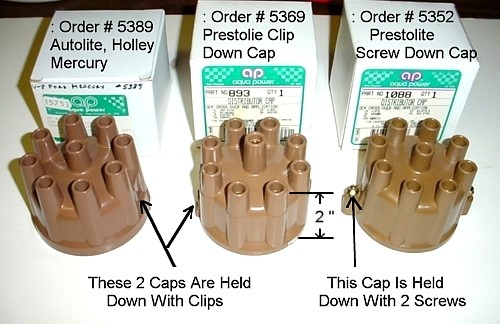

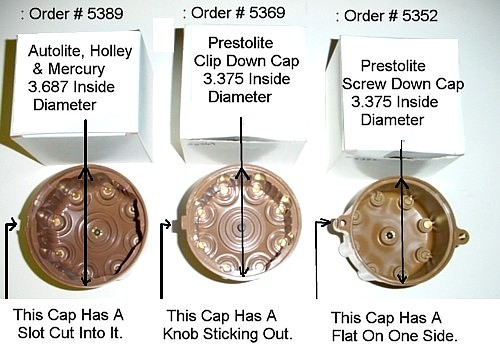

MerCruiser uses 4 different distributors in the Ford engines.

Please compare your distributor caps with the ones we have shown here and above ( Mallory )


































Click Here For Prices
