Gen II Water Pump Kits for MerCruiser

Click Here For Prices





This water pump service kit will fit all Alpha One / Generation II drives made from 1991 to Date.

This Kit Includes :

(2) Gaskets
(1) Stainless Steel Wear Plate
(1) Impeller
(1) Seal For Top Of Pump Housing
(1) Seal For Upper And Lower Outdrive Housing







         : Order # 2043

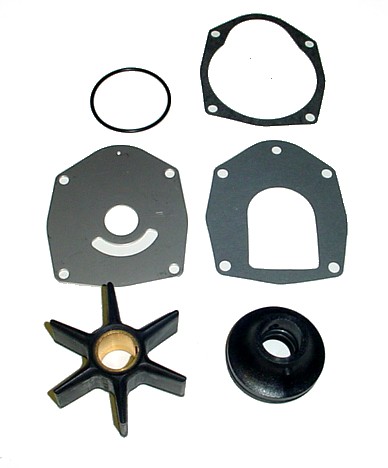

This water pump service kit will fit all Alpha One / Generation II drives made from 1991 to Date.

This Kit Includes :

(2) Gaskets
(1) Stainless Steel Wear Plate
(1) Impeller
(1) O-Ring For The Lower Base Assembly
(1) Lower Base Assembly With Seals





          : Order # 2080

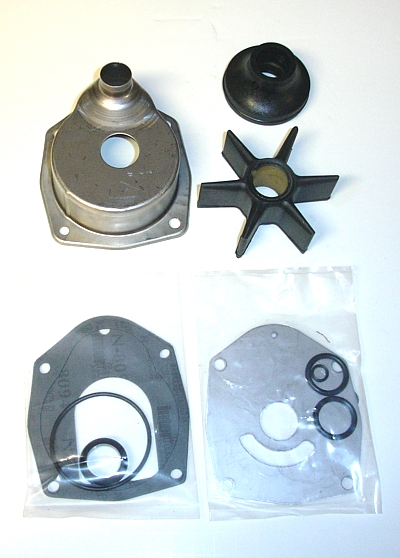

This replaces MerCruiser p/n 817275Q05 water pump kit. It will fit all Alpha One / Generation II drives made from 1991 to Date.

This Kit Includes :

(2) Gaskets
(1) Stainless Steel Wear Plate
(1) Impeller
(1) O-Ring For The Lower Base Assembly
(1) Lower Base Assembly With Seals
(1) Stainless Steel Water Pump Housing







          : Order # 3147

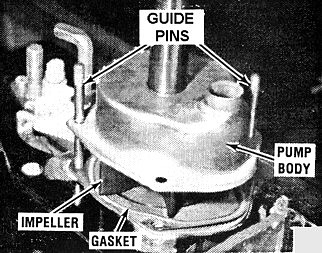

            Gen II Water Pump Guide Pins

This is MerCruiser p/n 91- 821571A1. These guide pins are used during the reassembly of the water pump.  After placing the gaskets, wear plate and impeller in the lower unit, these pins are then screwed into (2) of the water pump mounting holes and are used to guide the upper stainless steel housing down onto the mounting surface.

Always remember to put some grease inside of the upper housing and to turn the vertical drive shaft clock-wise when lowering the housing down onto the mounting surface. This will put the correct bend on the impeller.











These will fit all Alpha One / Generation II drives made from 1991 to Date.

         : Order # 9872

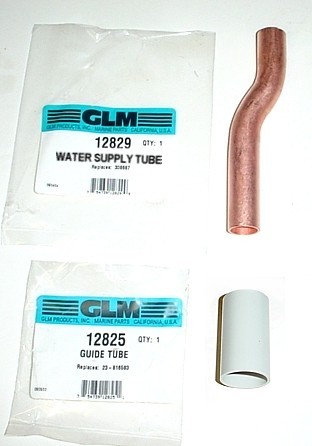

This is MerCruiser p/n 32-860220 upper copper water supply tube ( old # 32-814384 ). It fits into the upper outdrive housing and supplies water from the water pump in the lower unit to the upper housing.

          : Order # 2829







This is MerCruiser p/n 23-816583 lower plastic water pump guide tube. It mounts on top of the water pump coupling (shown below) and guides the upper copper water supply tube ( shown above ) into the top of the water pump coupling. It will fit all Alpha One / Generation II drives made from 1991 to Date.

          : Order # 2825









This is MerCruiser p/n 816597A1 lower guide coupling. It  comes with (2) o-rings which fit inside. This coupling sets on top of the stainless steel water pump housing and seals the upper copper tubing to the lower pump housing. The plastic guide tube above fits in the top of this. This comes with the (2) o-rings.

         : Order # 2824



These are MerCruiser p/n 25-21836 o-rings. Two of these go inside of the above coupling. They will fit all Alpha One / Generation II drives made from 1991 to Date and are sold in a package of (1) each.

         : Order # 1836











This is MerCruiser p/n 26-816575A2 Gen II water pump slinger face seal. It is slightly compressed on top of the stainless steel water pump upper housing using the height setting tool shown.

Please note ! The tool is not available to us without the seal .

For the seal & the height setting tool


            : Order # 2599
