MerCruiser Gimbal Bearing Drivers

Click Here For Prices







This gimbal bearing driver is 15” long and has a recessed 3 3/8 diameter drive head pined to it. The other end of this tool has 5 inches of heavy-duty knurl.  It is used to drive in gimbal bearings on all MerCruiser #1 drives made from 1966 to Date including Pre-Alpha “R”, Alpha One “MR”, Generation II, all Bravo’s as well as O.M.C. Cobra’s. This tool does not come with the bearing shown in the photo. Shipping Wt 10 #

 2 Day USPS Priority Mail shipping is $15.05



          : Order # 8000



Gimbal Bearing Drive Head & Shoulder Screw







You can use this drive head with your own engine alignment tool by drilling a 3/8 hole thru it.

Slide the driver head onto your alignment bar and thread the 3/8 hardened shoulder screw thru it  whenever you need to install a gimbal bearing. Your engine coupler is used to keep the tool straight while driving in the bearing.















Before removing your old bearing, slide the drive head onto the alignment shaft. Put the alignment shaft and drive head into your engine coupler until the alignment tool bottoms out into the engine coupler. Move the drive head against your old gimbal bearing and put a mark behind the drive head.

Remove the alignment tool and drive head from your boat. Now move the drive head 1/4 of an inch away from the mark, toward the small end of the tool. This is so when you drive in the new bearing, the alignment tool will not bottom out against the back of the coupler.

Now set the tool up in your drill press and use a 3/8 drill to transfer the hole thru your engine alignment tool.



   Shipping Wt. 3 Lbs.                   : Order # 8500

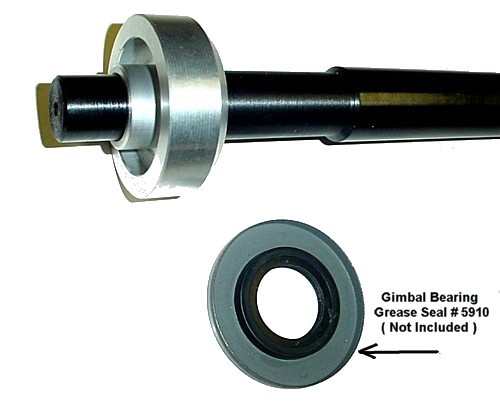

Gimbal Bearing Grease Seal Driver





This tool is used along with your own engine alignment tool to drive in the grease seal located in front of the gimbal bearing.

















Slide the tool over the small diameter of your alignment tool. Place the grease seal over the end of our tool and drive the seal in. This tool does not come with the seal or the alignment tool shown in the photo.

Click here for seal.

Shipping Wt. 1 Lb.



         : Order # 7550
