MerCruiser Gimbal Housings

 Click Here For Prices



 Note !  All of our gimbal housings are a special order from MerCruiser. Please allow 1 week for delivery.

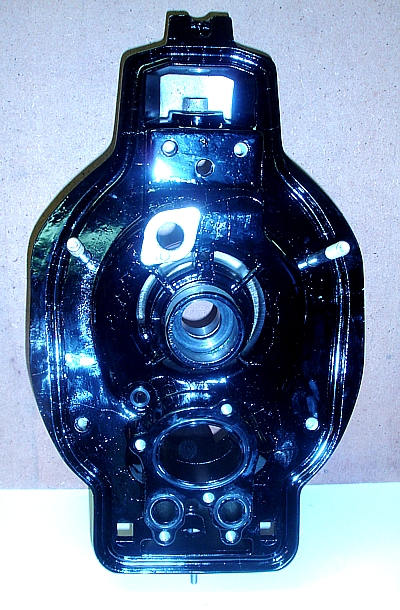

This is MerCruiser p/n 70862A1 gimbal housing. It was used from 1976 - 1982.

Please note ! This gimbal housing has the number 65532 cast into this side of it.



These housings come with :

All of the seals and needle bearings installed for a square to spline upper swivel shaft.

A new gimbal bearing and grease seal installed.

A plate and bolt for the trim limit switch wires.

(2) studs for the trim cylinder hose manifold block ( show at the very bottom )



Shipping weight is 22 Lbs.

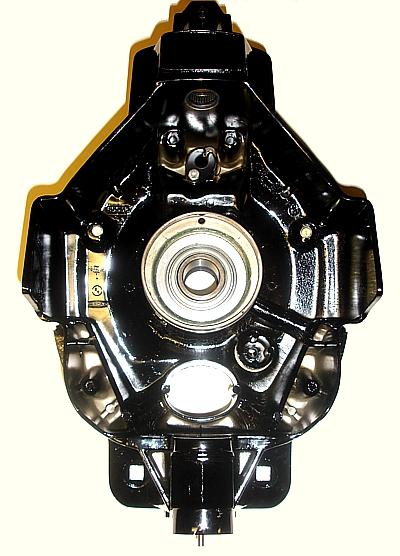

On the back side :

The one shown here has 5 tapped holes and 3 o-rings for mounting a 3 piece y-pipe for V-8 engines.

In-line engines use a different gimbal housing p/n 70861A1 with only 3 mounting holes.



This comes with :

The plate and (2) bolts for mounting the 90 degree cooling water copper tubing .

(2) 7/16 dia. studs which are 4 1/2" long

(3) O-rings for the Y-Pipe ( collector )



For Inline : Order # 0861

For V-8     : Order # 0862



For 2.625 ID. Y-Pipe O-ring : Order # 0863 @ $1.95

For 1.000 ID. Y-Pipe O-ring : Order # 3145 @ $1.50 Each

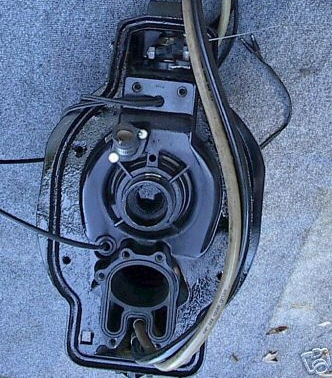

This is MerCruiser p/n 94989A6 & p/n 42260A6 gimbal housing. It was used from 1983 - 1990. The one shown here has 5 tapped holes and 1 odd shaped o-ring for mounting a 1 piece y-pipe.

Note! p/n 94989A6 has (2) needle bearings in the top for the steering lever. p/n 42260A6 has (2) stainless steel bushings.



p/n 94989A6 : Order # 4989

p/n 42260A6 : Order # 2260





For Irregular  Y-Pipe O-ring : Order # 1802 @ $8.95
