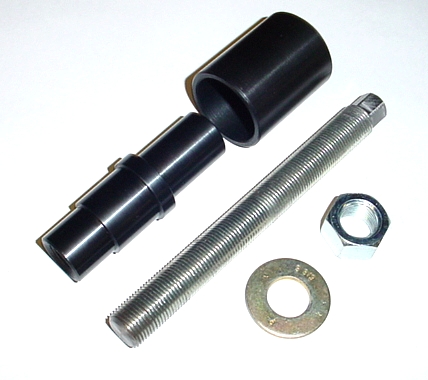

MerCruiser Gimbal Ring Bushing Tool Kit

 Click Here For Prices





    Bravo & Newer Gen II Gimbal Rings

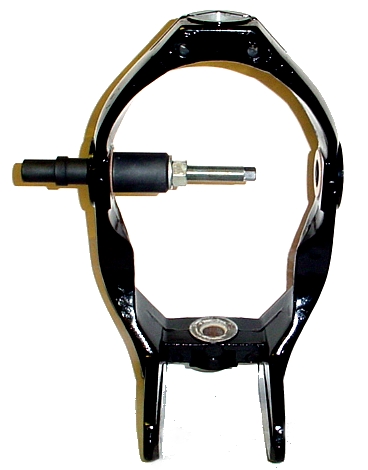

This tool kit is used to remove or install the (2) nylon bushings located in the sides of Bravo and newer replacement Gen II gimbal rings which use trim/sender limit switches.



Note !  Pre-Alpha, Alpha and older Gen II original equipment drives do not have any bushings in the sides. The hole is smaller and will not accept the larger diameter bushings. It will also not fit TR or TRS.



Click here for side bushings

Click here for newer Gen II gimbal rings









    Alpha, Gen II & Bravo Gimbal Rings





This kit can also be used to remove or install the 1 bushing/bearing located at the bottom of Bravo, Alpha, and Generation II units.

Note !  This will not fit the bottom bushing on TR or TRS which is larger. It will also not fit the bottom needle bearings on Pre-Alpha drives.



Click here for bottom bushings


















Shipping Wt. 2 1/2 Lbs.

          : Order # 5000
