Lower Carrier Nuts & Tab Washers

 Click Here For Prices

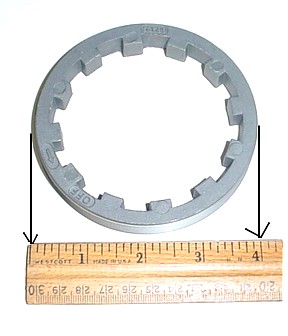

Mercury, Mariner, Force Outboard Motor Nut



This is Mercury p/n 52699 lower carrier nut. It threads into the lower housing on Mercury, Mariner & Force outboard motors 75 - 150 HP. It holds in the reverse gear carrier.

This nut measures exactly 4 " across the threads.

Click here for wrench.

           : Order # 2699








Pre-Alpha, Alpha, Gen II, TRS & Bravo 1 Nut



This is MerCruiser p/n 79448 ( old # 52834 ) lower carrier nut. It threads into the lower housing on all #1 MerCruiser outdrives and holds in the reverse gear carrier. It will fit Pre-Alpha, Alpha One, Alpha One/Generation II, Bravo 1 and TRS outdrives.

This nut measures exactly 4 3/8 across the threads.

This will also fit Mercury, Mariner and Force outboard motors Inline 6 & V-6 ( 105 - 225 HP ) and 3.0L (225, 250 EFI ).

Click here for wrench.

           : Order # 1120

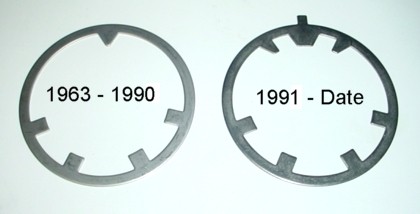

                       Locking Tab Washer



These tab washer fits into the lower housing on all #1 MerCruiser outdrive and locks the above nut to the lower housing. They will fit Pre-Alpha, Alpha One, Alpha One/Generation II, Bravo 1 and TRS outdrives. They will also fit Mercury, Mariner and Force outboard motors Inline 6 & V-6 ( 105 - 225 HP ) and 3.0L (225, 250 EFI ).



1963 - 1990 is MerCruiser p/n 14-79447.         1991 - Date is MerCruiser p/n 14-18323.

                   : Order # 1380                     : Order # 1381







                                   TR & Bravo 2 Nut

This is MerCruiser p/n 54163 lower carrier nut. It threads into the lower housing on TR & Bravo 2 outdrives and holds in the reverse gear carrier.

This nut measures exactly 5 1/8 across the threads.

Click here for wrench.

           : Order # 4163










               TR & Bravo 2 Locking Tab Washer

This is MerCruiser p/n 14-54167 locking tab washer. It locks the above nut to the lower carrier assembly on TR & Bravo 2 outdrives.

This lock washer measures 5 1/16 across.



           : Order # 4167
