1965 -
1975 MerCruiser Gimbal Ring
Click
Here For Prices

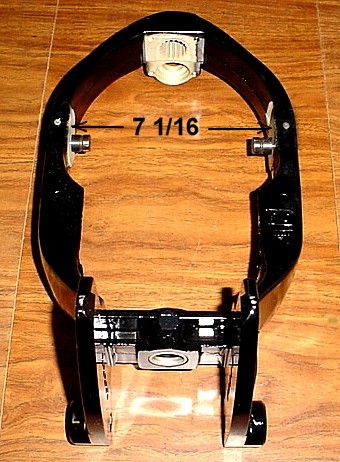

This is
MerCruiser # 87356A1. It will only fit 1965 - 1975 drives which have pull
hinge pins. You cannot use the
newer style gimbal ring in place of this one because of the distance in-between the 2 ears
on this gimbal ring is 7
1/16 wide.
All gimbal
rings come directly from MerCruiser. This ring comes with (2) 5/8 pull hinge
pins and (2) nails. It also has the needle bearings installed in the bottom.
Note ! The trim
limit switch which is located on the top, in front of the upper swivel shaft, is
no longer available from MerCruiser.
Click
here for 1962 - 1965 Gimbal Rings.
Shipping
Weight 10 Lbs.
This
has been discontinued by the manufacturer
: Order # 7356
This
gimbal ring is exactly the same size as our 1962 - 1965 # 8293 gimbal ring
EXCEPT you would have to ether cut off the two lower ears for the rear anchor
pin off your old ring and weld them on to the new one or cut the two lower ears
completely off the new gimbal ring below the needle bearings and weld your old
ones on because the ears are longer and it has the 2 holes for the front anchor
pin.
Upper Swivel Shaft
This is
MerCruiser # 32582 upper swivel shaft. It will only fit 1965 - 1975 gimbal rings
which have pull hinge pins ( shown above ).
This shaft cannot
be removed from the gimbal housing until the (1) cross bolt is removed from the
steering arm and the (1) 5/16 - 18 Allen head cross bolt is removed from the
starboard side of the gimbal ring.
This
has been discontinued by the manufacturer
:
Order # 2582
Click
Here For Prices
