MerCruiser Motor Mounts

2 Rear Motor Mounts

These are MerCruiser rear engine motor mounts and spacers p/n 99297A1. There are (2) of these at the rear of all MerCruiser engines to help control vibration.

If you are having difficulty with stripping out the splines inside of the engine coupler you may want to replace both of these because they get soft after awhile and the engine drops down causing misalignment.

These are the new improved motor mounts from GLM. The 2 knurled diameters (shown up) are actually installed facing down to bite into the 2 ears on the back of the transom plate.

These come in a package of 2 from GLM Marine.

: Order # 1045

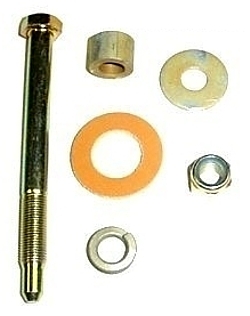

Rear Motor Mount Bolt Kit

This is MerCruiser p/n 10-97934A1 rear motor mount bolt kit. It comes with everything shown here. There are 2 of these kits at the rear of all MerCruiser engines to bolt the engine to the transom housing.

These are from GLM Marine and sold in a package of (1) each. Order (2) to do the back of one engine.

: Order # 9330 for the lock washer only

: Order # 1810 for the bolt kit ( shown )

Front Engine Motor Mount

This is MerCruiser p/n 32833 front engine motor mount. There is only (1) of these on the front of all 4 & 6 cylinder in-line MerCruiser engines. This motor mount and spacer comes from MerCruiser.

V-8 engines Do Not use a front engine motor mount. They have (2) solid leveling mounts on each side of the front of the engine for adjustment.

: Order # 2833 for the motor mount only

: Order # 5903 for the motor mount spacer only
