MerCruiser Outdrive Reservoir Kits

 Click Here For Prices





            Pre-Alpha & Alpha One

This is MerCruiser # 69622A7 reservoir kit. It can be used on 1965 - 1990 Pre-Alpha and Alpha drives. It mounts inside of the boat on the transom. It comes with a template which shows the location for drilling the hole for the oil supply hose. The plastic bottle shown will hold an additional 32 oz. of outdrive oil should the drive require it.

This kit comes directly from MerCruiser.

  Wt. 4 Lbs.

MerCruiser does not sell this hose separately

Click Here For Installation Instructions

 This has been discontinued by the manufacturer

         : Order # 9622









                  Outdrive Adaptor Fitting



This is MerCruiser p/n 22-98278 adaptor fitting.

This fitting threads into the top vent hole of the outdrive and connects to the flex oil hose going to the reservoir bottle.





: Order # 8278

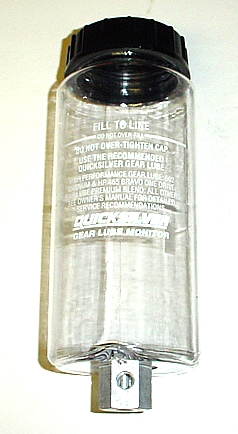

                                   Round Bottle Only



This is MerCruiser #69622A12 bottle assembly.

 Please note! The round bottle which was used on Generation II and Bravo drive units p/n 19743A4 is no longer available. It has been superceded to the square bottle & bracket kit shown below.

This bottle is :

* 8 inches tall
* 3 1/2 inches diameter in the center
* 2 1/4 inch opening in the top
* 5/8 hole in the bottom with a 1 1/8 hex fitting
*
Hex fitting has (2) 1/8 pipe tapped holes
* Comes with cap for top
* Threads on the top cap are 2 3/4" Dia.

Shipping Wt. 1 1/2 Lbs.



: Order # 9675



Gen II & Bravo - Outdrive Reservoirs

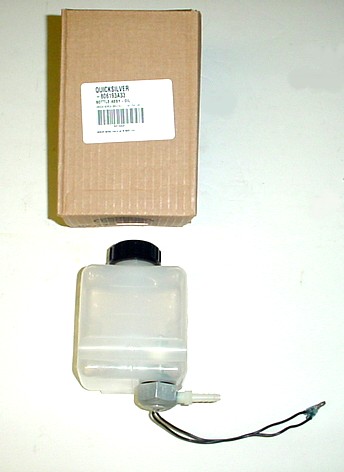

                     Square Bottle Only

This is MerCruiser # 806193A51. It mounts inside of the boat. It comes with the low oil level sender switch and hose fitting.

This comes directly from MerCruiser.

  Wt. 1 1/2 Lbs.


 Please note! The round bottle which was used on Generation II and Bravo drive units p/n 19743A4 is no longer available. It has been superceded to the square bottle & bracket kit shown below.



         : Order # 5708










          Square Bottle & Bracket

This is MerCruiser # 806193A48 which replaces p/n 19743A4. It mounts inside of the boat. It comes with the low oil level sender switch, mounting bracket, rubber hold down strap, and instructions.

This comes directly from MerCruiser.

Click Here For Instructions.

  Wt. 2 Lbs.





         : Order # 3A48

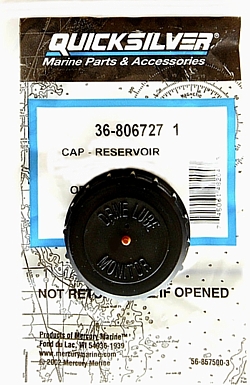

                                     Reservoir Cap Only

This is MerCruiser pn/ 36-8067271 gear oil reservoir cap. It will fit the 2 bottles shown directly above and 1 kit show directly below.

The thread size for this cap is 1 1/2 diameter. This cap does not come with the bottle.





Shipping Wt. 1/2 Lb.

         : Order # 7271 ........ $10.95









       Gen II Square Bottle Kit

This is MerCruiser # 806193A49. It mounts inside of the boat. It comes with the low oil level sender switch, mounting bracket, rubber hold down strap, hoses, fittings, dribble valve and instructions to convert 1991 - 1995 Gen II drives which came from the factory without the reservoir installed.

To install this kit, you must have the 1/2 hole located in the bell housing for the dribble valve.

This comes directly from MerCruiser.

  Wt. 3 1/2 Lbs.



         : Order # 3A49









               Bell Housing Dribble Valve

This is MerCruiser # 18920A1. It is pressed into the bell housing on Generation II and Bravo drives. It is spring loaded and stops the oil from leaking out of the reservoir when the drive is removed. When the drive is installed, it pushes on the spring loaded ball which is pressed into the top of the outdrive.

On 1991 thru 1995 model Gen II drives, the hole must be in the bell housing to use this valve.



         : Order # 8920





Gen II & Bravo - Reservoir Hose Fittings

These fittings fit inside of the Gimbal Housing on Gen II & Bravo drives. They connect the reservoir bottle inside of the boat to the short hose outside of the boat running to the dribble valve fitting behind the bell housing. The years shown are only approximately. Please see if you have brass or plastic fittings before ordering.

All of these hose fittings require 1/4 inside diameter hose



       88 - 97 Brass Gen II & Bravo

Long Brass Fitting : Order # 8922..$23.60

O-ring     : Order # 1951..$1.30

Washer   : Order # 1854..$2.60

Nut          : Order # 5053..$6.00

Short Brass Swivel Fitting : Order #  8923..$10.00



Click here for application chart



All of these hose fittings require 1/4 inside diameter hose





        98 - UP Plastic Gen II & Bravo

Long Plastic Fitting : Order # 1150 ..$13.00

E-Clip : Order # 7843..$1.25

Short Plastic Swivel Fitting : Order # 1163..$11.30



Click here for application chart








              Gen II & Bravo 1/4 " Oil Hose

This is Quicksilver # 32-19409 71 gear oil reservoir hose. It has an inside diameter of 1/4 " and is 54 inches long. It is used on all Bravo and on 1991 - Date Alpha One/Generation II drives which have a gear oil bottle inside of the boat.

This hose is used both inside and outside of the boat by cutting it to length.

Click Here For Hose Clamps.



          : Order # 9409









                TR & TRS 3/8 " Oil Hose

This is Quicksilver # 32-34423 gear oil reservoir hose. It has an inside diameter of 3/8 " and is 19 inches long. It is used on all TR & TRS drives.

This hose is used both inside and outside of the boat by cutting it to length.

Click Here For Hose Clamps.



          : Order # 4423
