Quicksilver - Outdrive Water Supply Hoses

 Click Here For Prices

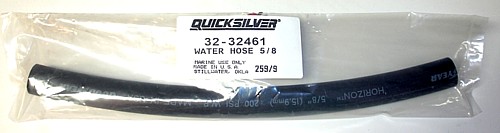

Pre-Alpha Water Supply Hose

This is MerCruiser p/n 32- 32461 cooling hose. It is used outside of the boat. It goes from the gimbal housing to the bell housing on all 1965 - 1982 Pre-Alpha sterndrives. It is held in place with (2) stainless steel hose clamps. This hose has a 5/8 inside diameter.

Click here for hose clamps

          : Order # 0625





Alpha One & Gen II Water Supply Hose

This is MerCruiser p/n 32- 41725-33 cooling hose. It is used outside of the boat. It goes from the gimbal housing to the bell housing on all 1983 - Date Alpha One & Generation II sterndrives. It is held in place with (2) stainless steel hose clamps. This hose has a 3/4 inside diameter.

Click here for hose clamps

          : Order # 0750




Bravo Water Supply Hose Kit - Old Design

This is MerCruiser p/n 32- 43437 molded cooling hose. It is used outside of the boat. It goes from the gimbal housing to the bell housing on all Bravo & Blackhawk sterndrives. It is held in place with (2) plastic threaded inserts which expands both ends of this hose from the inside.

This item comes from GLM Marine. This kit now comes with 2 threaded inserts and also a plastic install tool while supplies last.



 This item is soon to be discontinued.               No exchanges or credits on any portion of this kit.

Click here for hose clamps                        Click here for extra inserts & optional installation tool

          : Order # 7130



Bravo Water Supply Hose Kit - New Design

This is MerCruiser p/n 8M0090859 molded cooling hose. It is used outside of the boat. It goes from the gimbal housing to the bell housing on all Bravo & Blackhawk sterndrives. It is held in place with (1) plastic threaded inserts which expands one end of this hose to the bell housing. The other end inside of the boat is held in place with a collapsible rubber bushing.



This item comes with :

a.  Hose Assembly GLM  47160                                   No exchanges or credits on any portion of this kit.
b.  Rubber Bushing GLM 86332
c.  Bushing Retaining Tool W/Screws GLM 90540
d.  Water Inlet Gasket GLM 33000
e.  Screws GLM 22347
Click here for extra inserts & optional installation tool
f.   Hose End Insert GLM 47131
g.  Water Inlet Housing New Style W/Quick Connect
h.  Water Inlet Housing Old Style W/O Quick Connect                                       Click here for hose clamps
i.   Hose End Insert Driver


Click Here For Installation Instructions
                                                  : Order # 7230
