Bell Housing Water Supply Tubes & Rubber Bushings

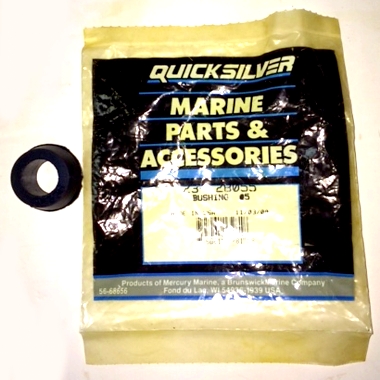

5/8 Rubber Bushing Pre-Alpha

This is Quicksilver p/n 23-28055 gimbal housing water supply tube bushing. It mounts to the gimbal housing on 1967- 1982 Pre-Alpha drives Ser #1,474909 to 6,225576

This is :       3/4 thick
                      1 3/16 OD
                      5/8 ID

: Order # 8055

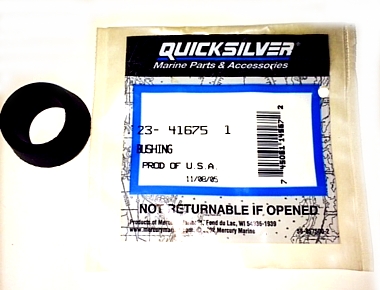

3/4 Rubber Bushing Alpha One

This is Quicksilver p/n 23-416751 gimbal housing water supply tube bushing. It mounts to the gimbal housing on 1983-1990 Alpha One drives Ser #6,225577 to OD469828

This is :        3/4 thick
                       1 3/16 OD ( Smaller than Gen II )
                       3/4 ID

: Order # 1675

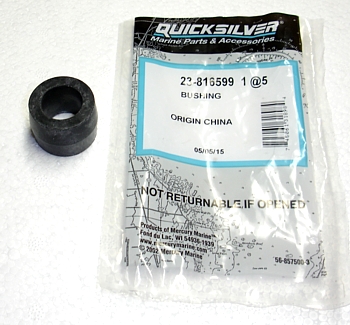

3/4 Rubber Bushing Gen II

This is Quicksilver p/n 23-8165991 gimbal housing water supply tube bushing. It mounts to the gimbal housing on 1991- Date Gen II drives Ser #OD469859 & Above.

This is :        13/16 thick ( Thicker than Alpha )
                       1 1/4 OD ( Larger than Alpha One )
                       3/4 ID

: Order # 5991

5/8 Copper Tube

This is Quicksilver p/n 32- 86908--1 bell housing water supply tube. It mounts to the gimbal housing of 1965 - 1982 Pre-Alpha drives and transfers cooling water from the outdrive to the larger hose inside of the boat which runs to the front of V-8 engines.

Please Note ! When this tube extends inside of the boat, it curves to the right which is suppose to be for V-8 engines. Tubes which curved to the left have been superceded to the 3/4 Nylon tube below.

This water tube is for 5/8 diameter hose and is still made out of copper tubing. It does not come with any rubber bushings.

: Order # 6908

3/4 Nylon Tube

This is Quicksilver p/n 32- 416721 bell housing water supply tube. It mounts to the gimbal housing of 1983 - Date Alpha One & Gen II drives and transfers cooling water from the outdrive to the larger hose inside of the boat which runs to the front of the engine.

This water tube is for 3/4 diameter hose and is made out of nylon. This tube is no longer available in copper. It does not come with any rubber bushings.

: Order # 6721

Ref.

5/8 rubber bushing only # 23-28055 is no longer available ( we have a few left in stock )

3/4 rubber bushing only # 23-41675-1 is still available

5/8 bent copper tube for in-line engines # 32-86907-1 is not longer available

5/8 bent copper tube for V-8 engine # 32-60542 & # 32-86908-1 is no longer available ( we have a few left in stock )

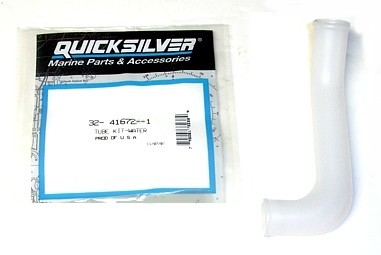

3/4 bent copper tube # 32-41672-1 is no longer available ( Now is above Nylon )
