Engine Driveline Stuff

Click Here For Prices

Click Here For Exploded Parts View

Click Here For Yoke Seal Replacement Instructions

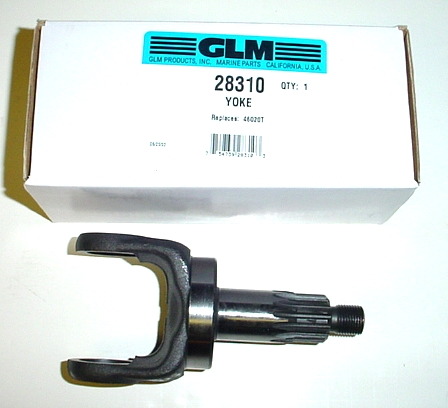

                Item # 1. Gear End Yoke

This is MerCruiser p/n 46020T gear end yoke. It is used on Pre-Alpha, Alpha One & Generation II drives made from 1965 - 1997.

This has a 2 1/4 diameter for the oil seal to ride on

Shipping Wt. 2 1/2 Lbs.

1965 - 1997 Pre-Alpha, Alpha One & Gen II
: Order # 0800

1998 - Up    Gen II Ser # OL100040 & Above (Standard)
: Order # 3635

1998 - UP    Gen II Ser # OL100040 & Above (GKN Type)
: Order # 4282

1988 - 2000 Bravo Ser # OM 111207 & Below
: Order # 8340

Click here for GKN Type Yoke

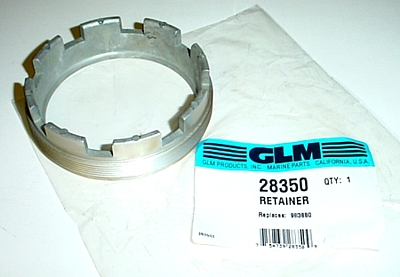

                        Item # 2. Retainer Nut

This is MerCruiser p/n 816881-2 ( old # 66071 & 816881-1 ) retainer nut. It is used on Pre-Alpha, Alpha One & Generation II drives made from 1965 - Date. It is 3 7/8 in diameter.

 : Order # 8350 for Pre-Alpha, Alpha One & Gen II

Click here for retainer nut wrench.

------------------------------------------------------------------------------------

Bravo retainer nut is MerCruiser p/n 11- 92044.
Bravo nut is 4 inch in diameter and will not fit Pre-Alpha or Alpha.

 : Order # 9200 for Bravo Retainer nut.





              Item # 3. Retainer Washer

This is MerCruiser p/n 35983 retainer washer. It is used on Pre-Alpha, Alpha One & Generation II drives made from 1965 - Date. It fits between the 3 7/8 retainer nut and oil seal carrier. The raised edge pushes against the 3 7/8 diameter o-ring to seal the gear oil from leaking around the outside.

         : Order # 8390



                        Item # 4. O-Ring

This is MerCruiser p/n 25- 70937 o-ring. It is 3 7/8 inch O.D. and is used on Pre-Alpha, Alpha One & Generation II drives made from 1965 - Date

 : Order # 0212 for Pre-Alpha, Alpha One & Gen II o-ring.

--------------------------------------------------------------------------

 : Order # 7386 for Bravo o-ring.





Note ! Item # 5 is not sold separately





 This is MerCruiser p/n 26- 823894 ( old # 26- 68493 ) oil seal. It is used on Pre-Alpha, Alpha One & Generation II drives made from 1965 - Date.

This seal is pressed into ( Item # 5. ) the oil seal carrier assembly.

Outside diameter is 3 inches

Inside diameter is 2 1/4 inches

  : Order # 5030 for Pre-Alpha, Alpha One & Gen II oil seal.

  : Order # 8816 for Bravo oil seal.

  : Order # 2818 for TR & TRS oil seal.





     Item # 6. Gear End Yoke Oil Seal Carrier Assembly



This is MerCruiser p/n 66081A2 oil seal carrier assembly. It is used on Pre-Alpha, Alpha One & Generation II drives made from 1965 - Date. This comes with the 2 1/4 inside diameter oil seal installed.

This is the only way you can get the aluminum carrier is with the seal installed.

: Order # 8370 for Pre-Alpha, Alpha One & Gen II

----------------------------------------------------------------------

: Order # 8372 for Bravo Carrier Assembly.








    Item # 7. Gear End Yoke Locknut

This is MerCruiser p/n 11- 22339 gear end yoke locknut. It is used on Pre-Alpha, Alpha One & Generation II drives made from 1965 - Date.

This nut has a 5/8-18 thread on it.



         : Order # 8360
