MerCstuff. Com


MerCruiser Lower Carrier Retainer Wrenches

Click Here For Prices


  Pre-Alpha, Alpha, Gen II, TRS, Bravo 1


This is MerCruiser p/n 91- 61069T lower bearing carrier wrench. It will fit the 4 3/8" retainer nut in the lower housing on all #1 MerCruiser drives made from 1966 to Date including Pre-Alpha, Alpha One, Generation II, Bravo I and TRS.

This will also fit Mercury/Marnier outboards 150hp & up.

This item now comes from GLM Marine with a black oxide finish.

Shipping Wt. 4 1/2 Lbs.

Click here for nuts.

Note ! This tool will not fit Bravo 2, 3, XR or TR.



          : Order # 0190

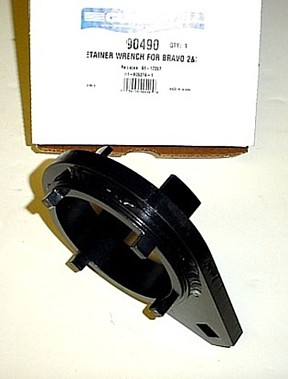

                       TR, Bravo 2 & 3

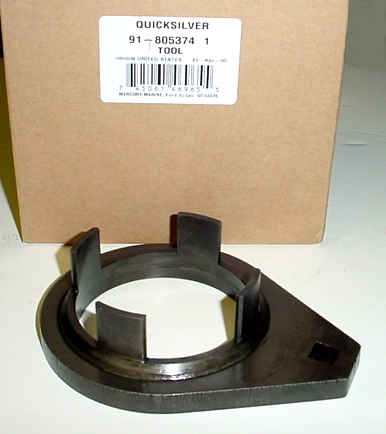

This tool replaces MerCruiser p/n 91-17257 & 91- 805374--1  lower bearing carrier wrenches. It will fit the larger nut in the lower housing on TR, Bravo 2 & 3 sterndrives

Note !  This tool will not fit Bravo XR Lower Units because the XR nut is about 1/2 smaller in diameter.

This item comes from GLM Marine.

Shipping Wt. 3 1/2 Lbs.

Click here for nuts.



          : Order # 0490

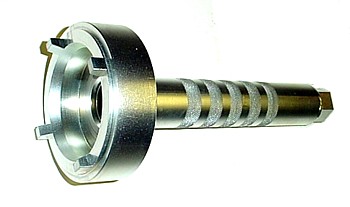

                      Bravo XR



This is MerCruiser p/n 91- 840393 lower bearing carrier wrench. It will fit the larger nut in the lower housing on all Bravo XR sterndrives

This item comes from MerCruiser.

Shipping Wt. 4 1/2 Lbs.

Click here for nuts.

          : Order # 0393





           Mercury Outboard Motors

This is Quicksilver p/n 91- 73688 lower bearing carrier wrench. It will fit the 4 inch outside diameter nut in the lower housing on some Mariner & Mercury outboards.

Fits Mariner :
* 75/80/85 ( 4 Cyl. )
* 90/115/140 ( In Line 6 Cyl. )
* V-6/150 Magnum II

Fits Mercury :
* 75/80 ( 4 Cyl. )
* 90/115 ( In Line 6 Cyl. )
* V-6/XR4

The nut this tool fits is exactly 4 inches on the outside diameter.

Shipping Wt. 4 Lbs.  This item comes from Quicksilver.

Click here for additional applications for this tool

Click here for nuts.                            : Order # 3688


Please Note ! We are a MerCruiser Sterndrive web site. For Mercury & Mariner outboard lower carrier wrenches other than the one shown above, please call Sherwood Taylor @ (906) 466-2180
